噴塑不銹鋼扎帶-滾珠自鎖式
噴塑不銹鋼扎帶-鋼珠自鎖式

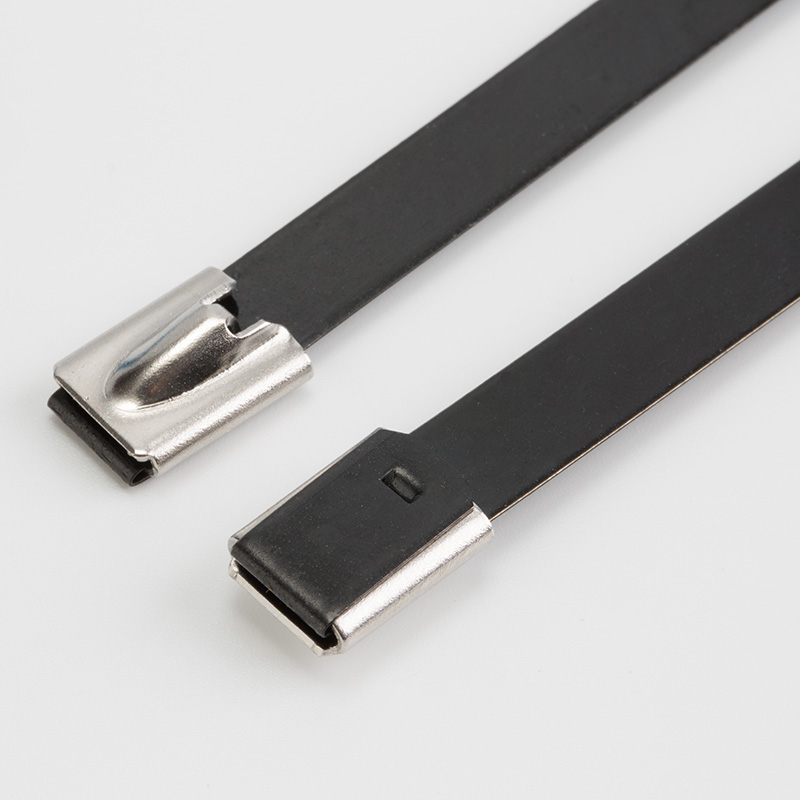

Stainless Steel Epoxy Coated Cable tie-Ball Self-lock
產品特性Product Features
材質：采用ASTM標準304/316不銹鋼，外噴環氧樹 脂粉末涂料。
特性：耐酸、耐腐蝕、不易燃燒，滾珠式結構使其 具有使用簡單、快捷，不可解開等優勢
工作溫度：-40℃+110℃
Material:Stainless Steel 304/316
Working temperature:-40℃+110℃
Characteristic:Epoxy coated,high resistance to acetic acid,alkali acid,sulphuric acid,corrode...etc
All length are available
產品詳細參數如下表：
|
規格型號 Part number |
寬度mm Width |
長度mm Length |
厚度mm Thickness |
捆扎直徑mm Max.bundle dia |
拉力KG Min.loop |
| JHCP-4.6X100 | 4.6 | 100 | 0.35 | 24 | 80 |
| JHCP-4.6X150 | 150 |
0.35 |
37 | 80 | |
| JHCP-4.6X200 | 200 | 50 | 80 | ||
| JHCP-4.6X250 | 250 | 63 | 80 | ||
| JHCP-4.6X300 | 300 | 76 | 80 | ||
| JHCP-4.6X350 | 350 | 89 | 80 | ||
| JHCP-4.6X400 | 400 | 102 | 80 | ||
| JHCP-4.6X450 | 450 | 115 | 80 | ||
| JHCP-4.6X500 | 500 | 128 | 80 | ||
| JHCP-4.6X550 | 550 | 141 | 80 | ||
| JHCP-4.6X600 | 600 | 154 | 80 | ||
| JHCP-7.9X150 | 7.9 | 150 | 37 | 100 | |
| JHCP-7.9X200 | 200 | 50 | 100 | ||
| JHCP-7.9X250 | 250 | 63 | 100 | ||
| JHCP-7.9X300 | 300 | 76 | 100 | ||
| JHCP-7.9X350 | 350 | 89 | 100 | ||
| JHCP-7.9X400 | 400 | 102 | 100 | ||
| JHCP-7.9X450 | 450 | 115 | 100 | ||
| JHCP-7.9X500 | 500 | 128 | 100 | ||
| JHCP-7.9X550 | 550 | 141 | 100 | ||
| JHCP-10X200 | 10 | 200 | 50 | 100 | |
| JHCP-10X300 | 300 | 76 | 100 | ||
| JHCP-10X350 | 350 | 89 | 100 | ||
| JHCP-10X400 | 400 | 105 | 100 | ||
| JHCP-10X500 | 500 | 128 | 100 | ||
| JHCP-12X300 | 12 |
|
76 | 120 | |
| JHCP-12X350 | 350 | 89 | 120 | ||
|
JHCP-12X400 |
400 | 105 | 120 | ||
| JHCP-12X500 | 500 | 128 | 120 | ||
|
JHCP-12X800 |
800 |
193 |
120 | ||
|
任何長度均可定制，如果表格中沒有找到你想要的尺寸，請來電咨詢！ |
|||||
